WM715-LED-S to WM745-LED-S - SG Medical

WM715-LED-S to WM745-LED-S

WM715-LED-S to WM745-LED-S

X-RAY VIEWER

Product Features

LED specification: Super bright SMD LED, 144pcs/bank; CCV≥8000K
LED lifespan ≥100000hours
Power, voltage, frequency: built-in global adaptive power; AC90V-240V 50/60hz
View panel luminance: PWM dimming system, can be modulated from 1% to 100%
Luminance: 0 to 4500 CD/M2
Film automatic activation:

– The panel will light up automatically when film inserted
– The panel will light off automatically when film moved away

Brightness uniformity: ≥ 90%

Product successfully added to the Quote List

Categories A. X-RAY Viewer, B. Concealment Collection Table, Miscellaneous Hospital Equipment

Description

Description

Technical Specification

Model: WM715-LED-S

External size (LxWxH): 478 x 506 x 25mm (slim version)
Visual area size (LxW): 360 x 425mm
Max power(w): 30w

Model: WM725-LED-S

External size (LxWxH): 838 x 506 x 25mm (slim version)
Visual area size (LxW): 720 x 425mm
Max power(w): 60w

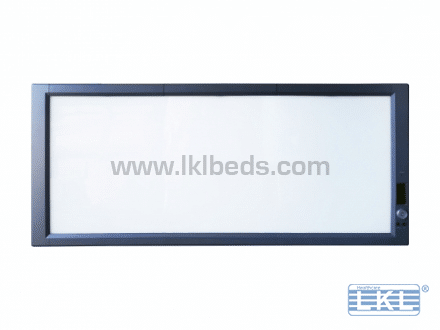

Model: WM735-LED-S

External size (LxWxH): 1198 x 506 x 25mm (slim version)
Visual area size (LxW): 1080 x 425mm
Max power(w): 90W

Model: WM745-LED-S

External size (LxWxH): 1558 x 506 x 25mm (slim version)
Visual area size (LxW): 1440 x 425mm
Max power(w): 120w
