Description
MDA Reg No: GA21635330017

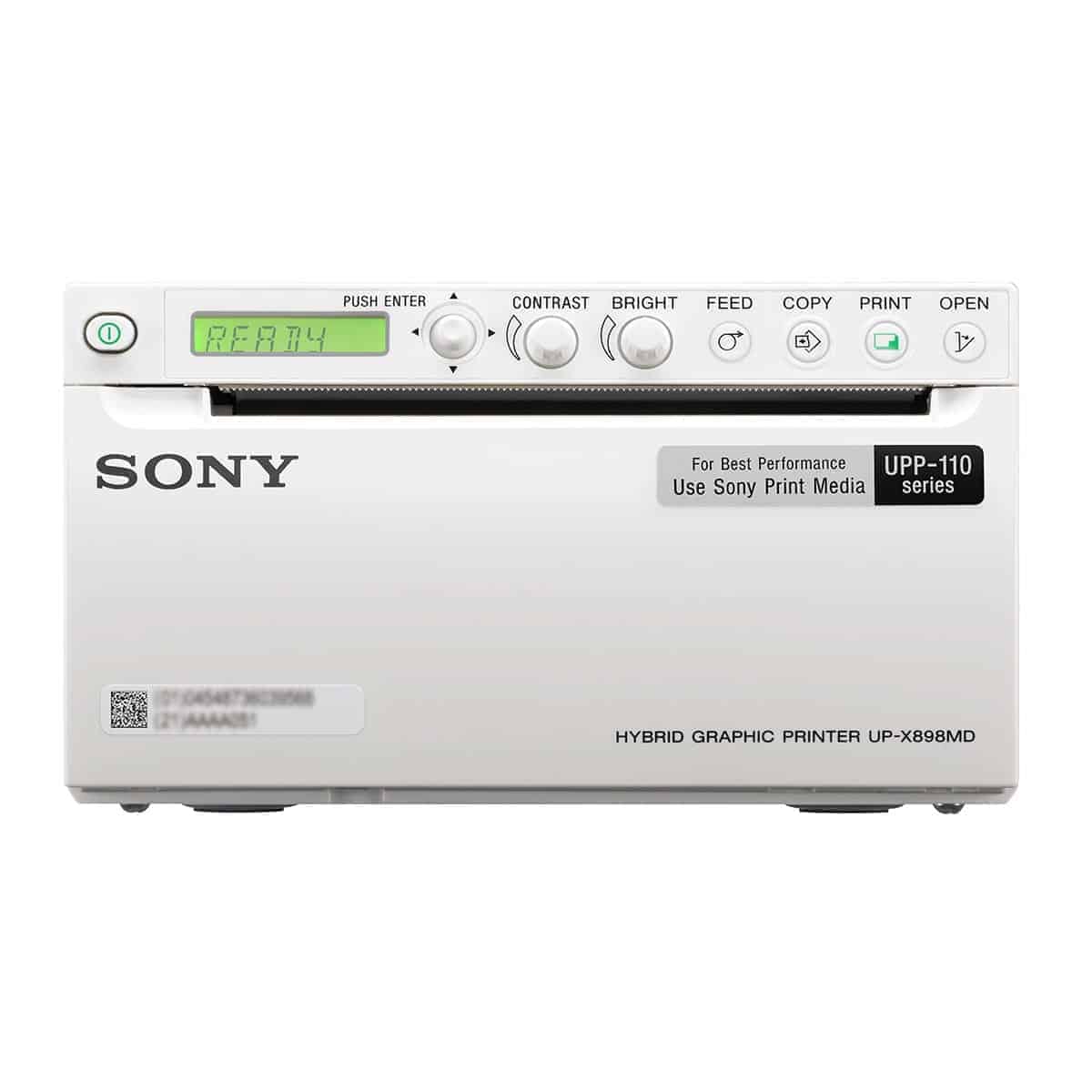

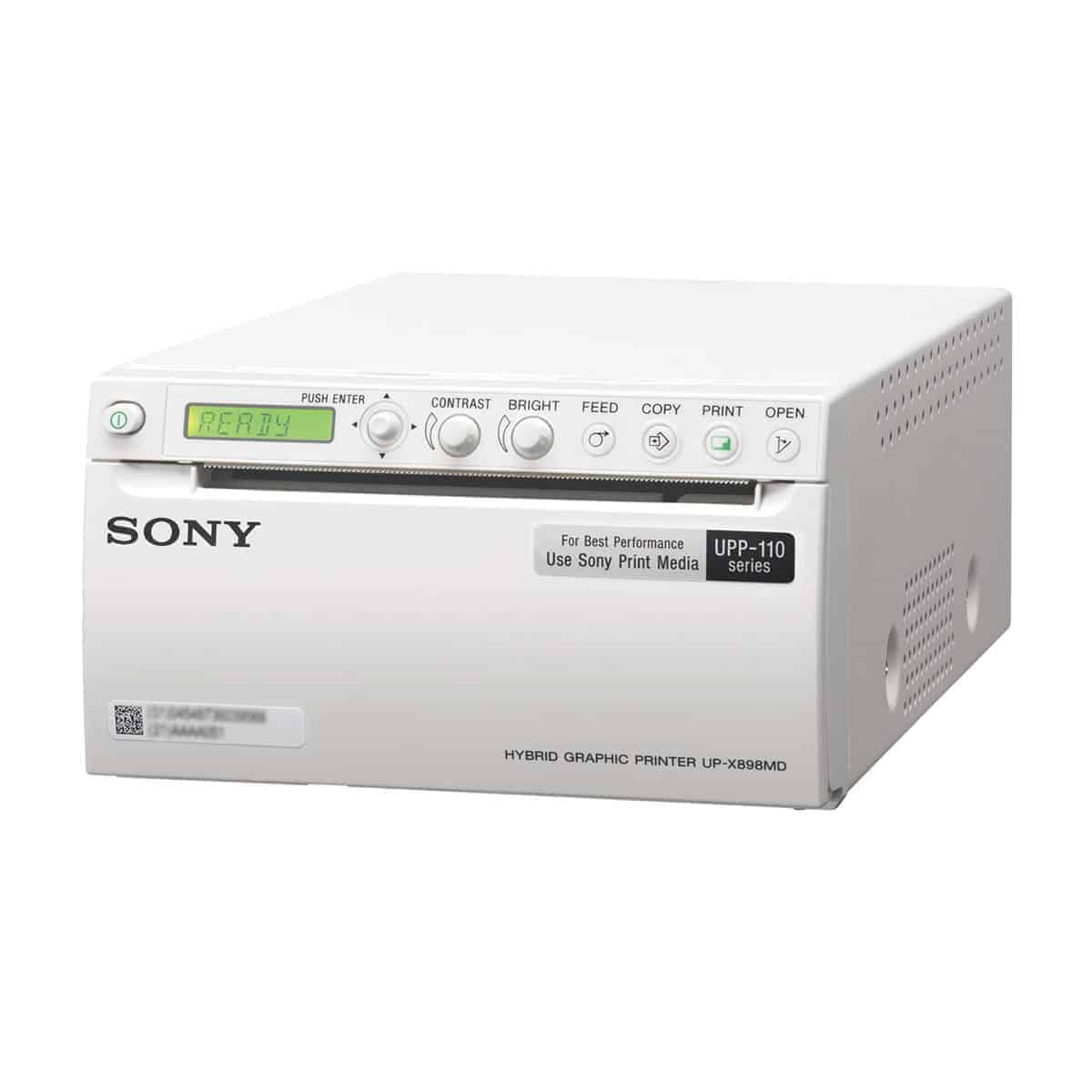

The UP-X898MD printer is a hybrid model accepting both analog and digital signal inputs. UP-X898MD offers “PRINT, STORE and GO” capabilities with Sony’s IMAGEPORT™ interface. This allows users to either print image store them on a USB drive and transfer them to a laptop. This black and white ultrasound printer is designed for today’s advanced ultrasound systems with high speed printing times of approximately 1.9 seconds, high resolution of 325 DPI and a compact-space-saving design.
Highlights
- Hybrid – accepts both analog and digital signal input
- Ideal for today’s advance ultrasound systems
- Unique built-in digital capture enables you to store images on a connected USB drive
- Sony’s IMAGEPORT™ interface is now incorporated into the UP-X898MD
- Print—–Store—-Go
- 1.9 Second print speed
- User-friendly controls on front panel
- Uses same media as the UP-895 and UP-897 series printers
- High-quality, photo like images
UPP-110S/5 Standard Media
UPP-110HD High Density Media
UPP-110HG Premium High Gloss Media
| General Specifications | Detail |
| Connector | Analog |
| Dimensions | 6 1/8 x 3 1/2 x 9 1/2 inches |
| Gradation | True 256 gray balance |

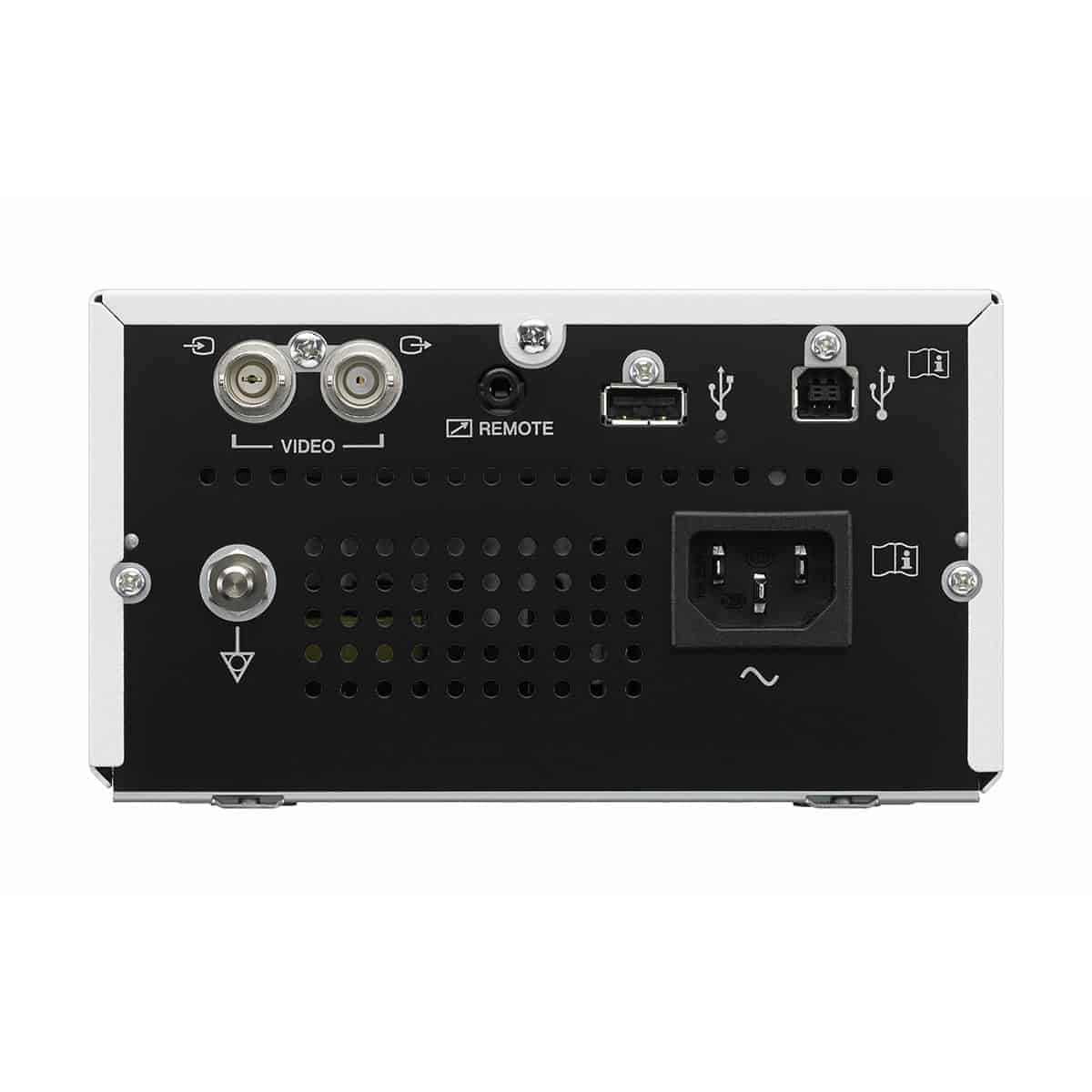

| Interface | Input connector: VIDEO IN (BNC type) NTSC or PAL composite video signals 1.0 Vp-p, 75 ohms (NTSC/PAL automatically discriminated) Output connector: VIDEO OUT (BNC type) Loop-through Remote connector: stereo mini jack USB |
| Picture Memory | 10 Frames |
| Power Requirements | 100 to 240 V AC 50/60Hz 1.5A to 0.8A |
| Print Media | UPP-110S/5,UPP-110HD, UPP-110HG |
| Print Speed | Approximately 1.9 seconds (High Speed Mode) |
| Printer Driver Software | OS: Windows® 2000/XP |
| Printing Method | Direct Thermal Printing |
| Resolution | 325 dpi |
| Safety Compliance | UL60950-1 Listed CSA C22.2 No. 60950-1 UL60601-1 Listed CSA No. 60601-1 |
| Thermal Head | Thin film thermal 1280 dots |
| Type | Black White Printer |
| Weighte | Approximately 5lb. 12 oz |
