Description

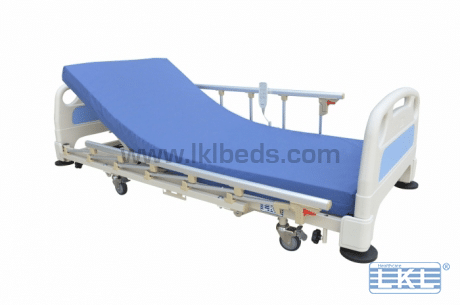

Product Features
- Ultra-low with the minimum height at 265mm (10.5”)
- All parts are made by tooling to ensure uniform quality
- Steel construction finishing with scratch and chip resistant of hard epoxy powder coating
- Electric motorize bed with smooth and control operation by 3 actuators
- Detachable head and foot boards
- Mobile on 4 x 100mm diameter castors with 2 brakes diagonally fitted
- Provide with drainage bag holder at both sides of the bed
- Hi-Lo, backrest & kneerest controlled by hand set
- Auto contour backrest and kneerest adjust simultaneously
- 4 provisions for IV pole
- 2 drainage bag holders
- 4 provisions for monkey pole
- With 4 corners rotating bumpers
- Intention of use: suitable to be use in ward and geriatric ward
Technical Specification
- Hi-Lo: 265-670mm
- Working capacity: 180kg
- Backrest: 0° – 75°
- Auto Contour
- Kneerest: 0° – 25°
- Legrest: 0° – 45°
- Overall Approx Dim(mm): 2115(L) x 1013(W)
Electrical System
- DC-actuator system (TUV & UL approved & EC60601-1)
- 24VDC out-put
- Voltage: 220-240; 50Hz – 60Hz
- Built in back-up battery
Accessories Included
- Medi-flex mattress with PU foam (32 Density) x 1 unit (BX411)
- Mattress Approx Dim (mm): 1905 (L) x 864 (W) x 102 (H)
- Mattress cover with fire retardant, anti-bacterial, anti-static and waterproof
- Collapsible aluminium siderail x 1 pair (BX200)
- Approx Dim (mm): 410 (H) to 1440 (L)
Optional Accessories
- Castors with Central Locking System (BA7001-CL)
- Hi-Lo: 355-765mm
- IV Pole with 2 Hooks (BX301 – Stainless Steel)
- Monkey Pulley (BX910)
- Orthopedic Frame
- Collapsible Aluminium Siderail with 11 Bars (BX211)
